Point Labeling

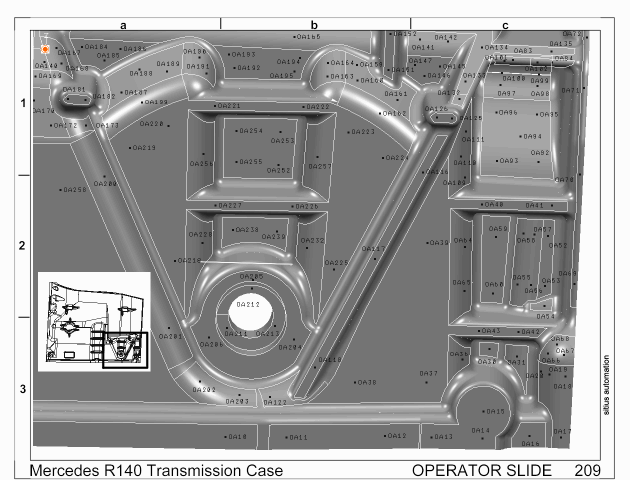

Image map (low resolution) Map image

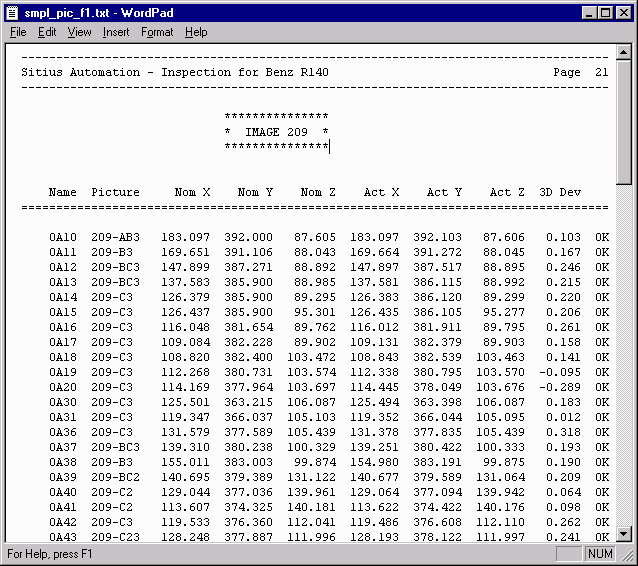

Corresponding inspection report

Text report

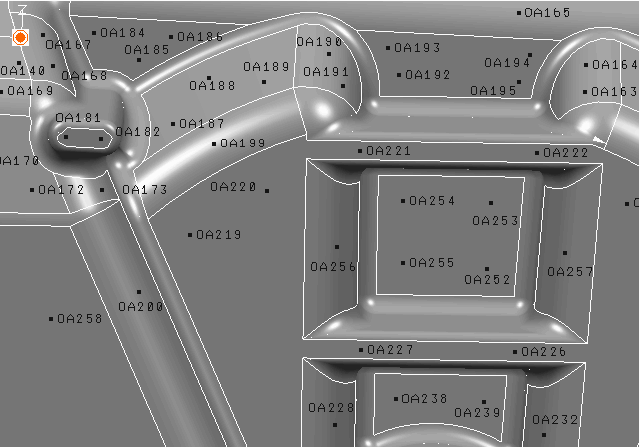

Cutout from the map above in actual size

Actual size



The Part: Transmission case.
The Process: Full inspection layout
The need for "road maps" illustrating in a generic way the results from
inspection is especially pronounced in complex parts such as this casting.
We use generic point labeling with automatic point distribution on diffrent
layers/views based on their visibility and we cross-reference the point
location in the report.
The Results: Creating "road maps" is automated by generating point index referencing
the points by its name and showing its location on the image in the report.
Highlights: Enhanceing complex inspection reports by creating highly readable images.
